Selected product:

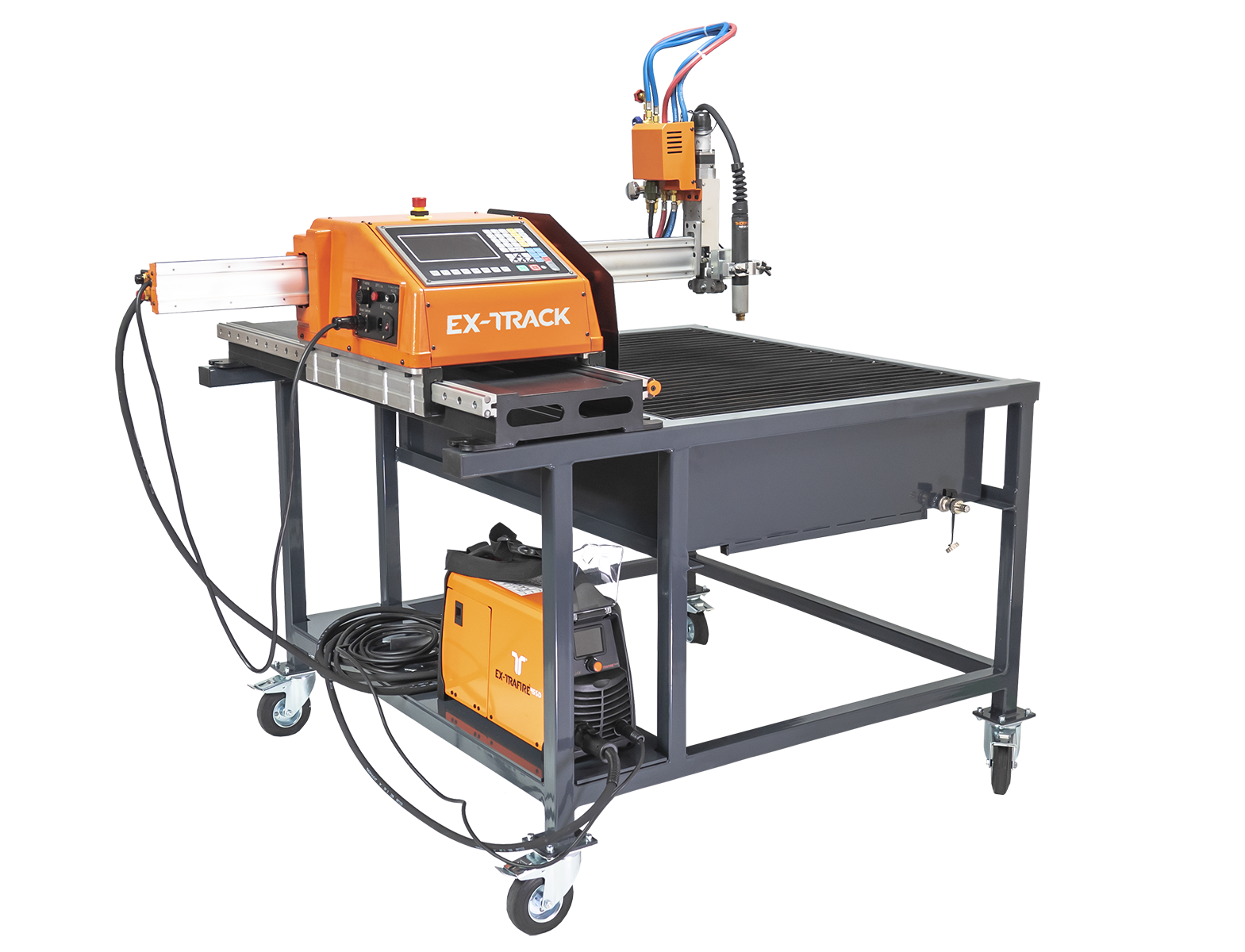

EX-TRACK® DEMO TABLE

Impressive, portable, and sturdy, the EX-TRACK® DEMO multiprocess cutting table is purpose built for demonstrating the EX-TRACK®CNC mechanized cutting system, equipped for oxy-fuel cutting and plasma cutting when combined with an EX-TRAFIRE® power supply.

This optimal size cutting table is ideal for in-house events, exhibitions, small fabrication shops or for training purposes. The deep waterbed captures melted material and safely quenches dross.

NAME EX-TRACK® DEMO 600 x 600 mm MULTI-PURPOSE PORTABLE TABLE
ORDER NUMBER EX-0-716-001
DIMENSIONS (H x W x L) 870 x 1360 x 1200 mm
MAX. LOAD CAPACITY FOR CUT MATERIAL 400 Kg
TOTAL LOAD CAPACITY OF THE TABLE (STATIC)  800 Kg
TOTAL LOAD CAPACITY OF THE TABLE  (DYNAMIC) 400 Kg
TABLE WEIGHT (WITHOUT WATER AND CNC UNIT) 108 Kg
USABLE WORK SURGACE FOR MACHINE CUTTING 600 x 600 mm
GRID WEIGHT 15 Kg
WATER TANK VOLUME 150 l
Description Configuration part no.
EX-TRACK® DEMO 600 x 600 cutting table FOR DEMO EX-TRACK®CNC EX-0-716-001
DEMO EX-TRACK®CNC – 1500 W 600 X 600 / 230 VAC / CE / PA-ready / OXY CNC system for EX-TRACK®DEMO TABLE EX-0-707-010
